Context-bound settings

Context-bound settings are configuration controls presented on a surface beside the activity UI, filtered by the activity’s live context (view, selection, mode, draft), so the user does not leave the here-and-now to rebuild mental models in a distant Settings tree.

In plain language: settings follow the work as a dependent process — not a storage room across town.

Core claim

Most products treat Settings as a destination: leave the task, open a catalog, hunt a control, save, walk back. That forces the user to recreate the mental context the activity already had.

Preferred shape:

  1. Activity UI remains primary — browsing users, editing a group, composing a policy stay in the main plane

  2. Settings surface is dependent — a sidebar / inspector / docked pane that subscribes to activity context

  3. Applicability predicates — each setting declares when it is relevant; the pane renders only matches

  4. Global catalog remains — full search, audit, and power-user jumps still exist; default altitude is context-bound

Why it exists

Admin consoles and multi-state web apps bury consequence. A toggle labeled "External members" means something when you can see the Engineering group; it means almost nothing on page 40 of Organization → Advanced.

Desktop inspectors and property sheets approximate the pattern for selected objects. Cloud consoles rarely do for activity states. The gap is product representation: the engine already knows which object and mode are live; the Settings gear pretends otherwise.

Mockups

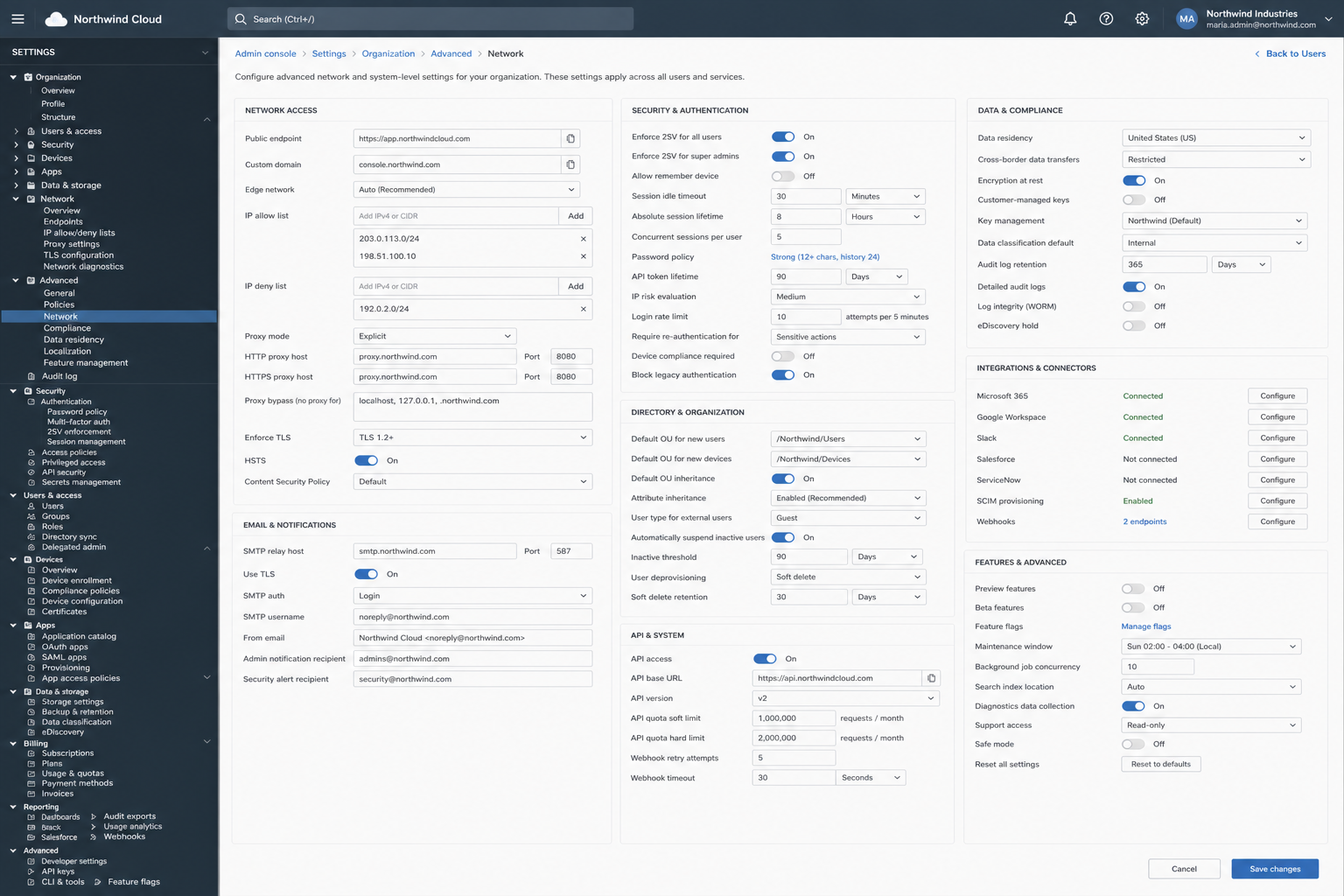

Anti-pattern — settings across town

Dense admin settings wall disconnected from live work

Deep breadcrumbs, unrelated columns, Save as a single decision over many domains. The user who was managing a person now holds that person in working memory while editing SMTP and API quotas.

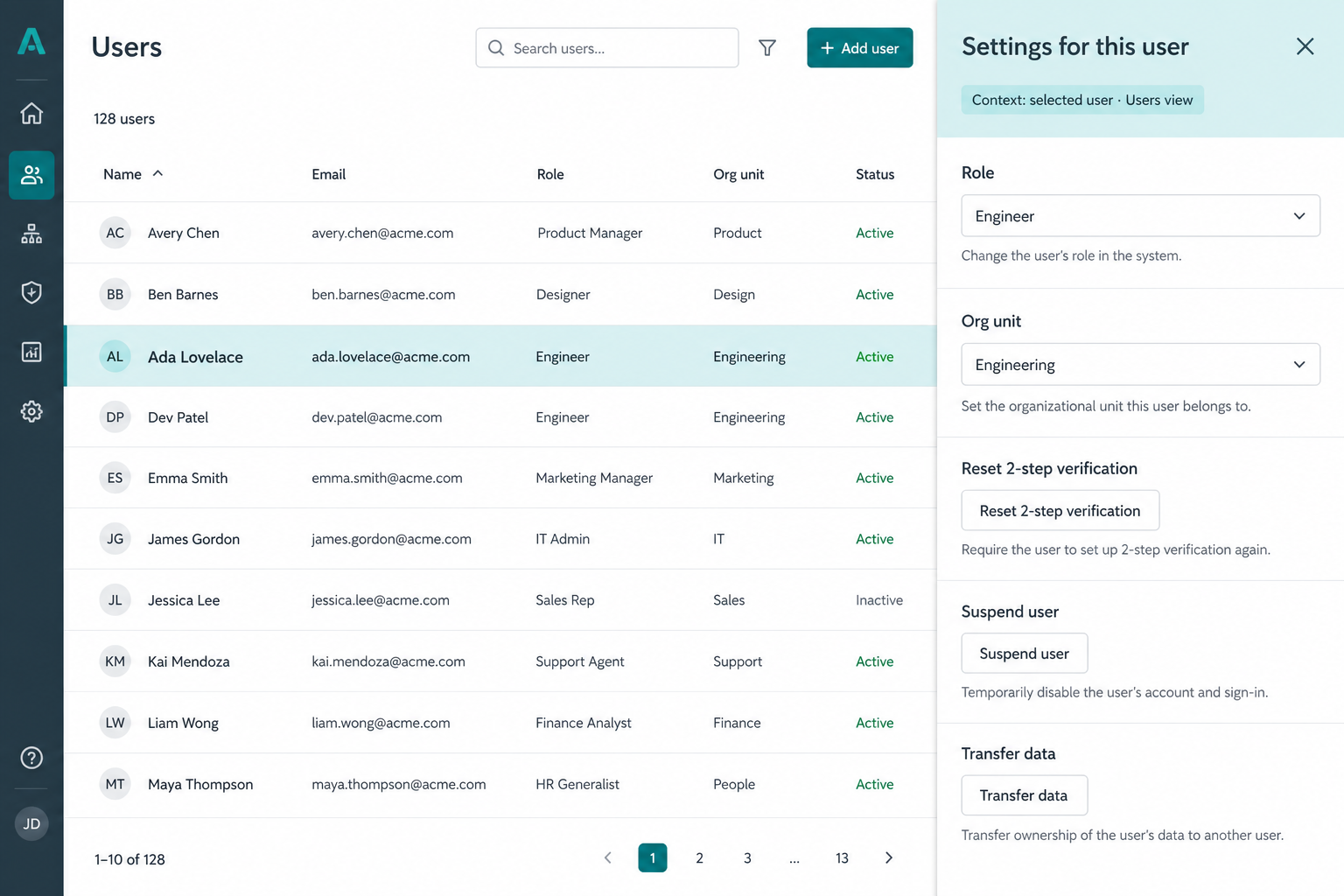

Bound to a selected user

Users table with context-bound settings pane for the selected user

Activity stays visible. The pane names the bind (Context: selected user · Users view) and lists only user-applicable controls with plain consequences.

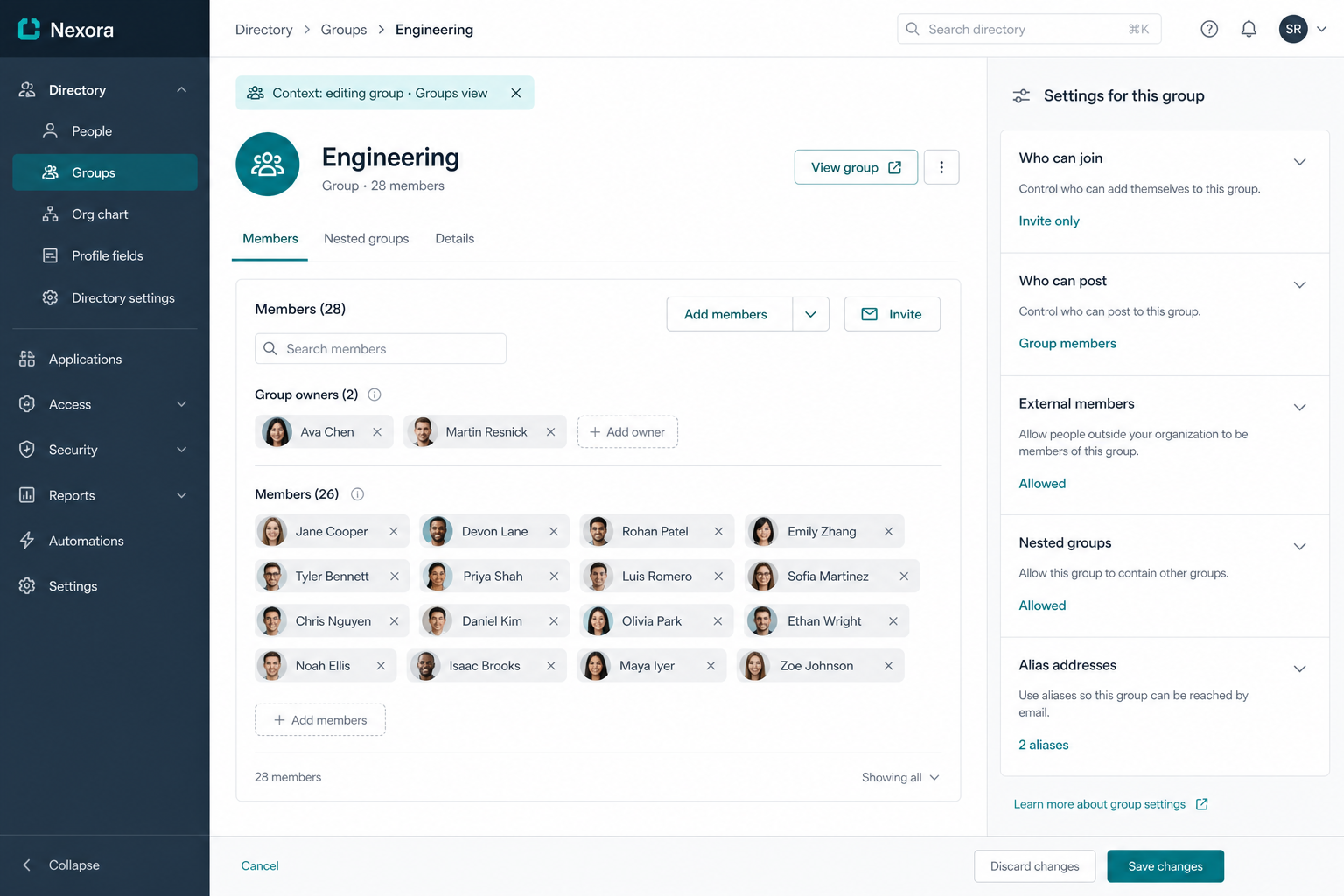

Same shell, group activity state

Group editor with settings pane rebound to the group

Meaningful context transition → pane reshapes. Membership work and group policy sit in one field of view.

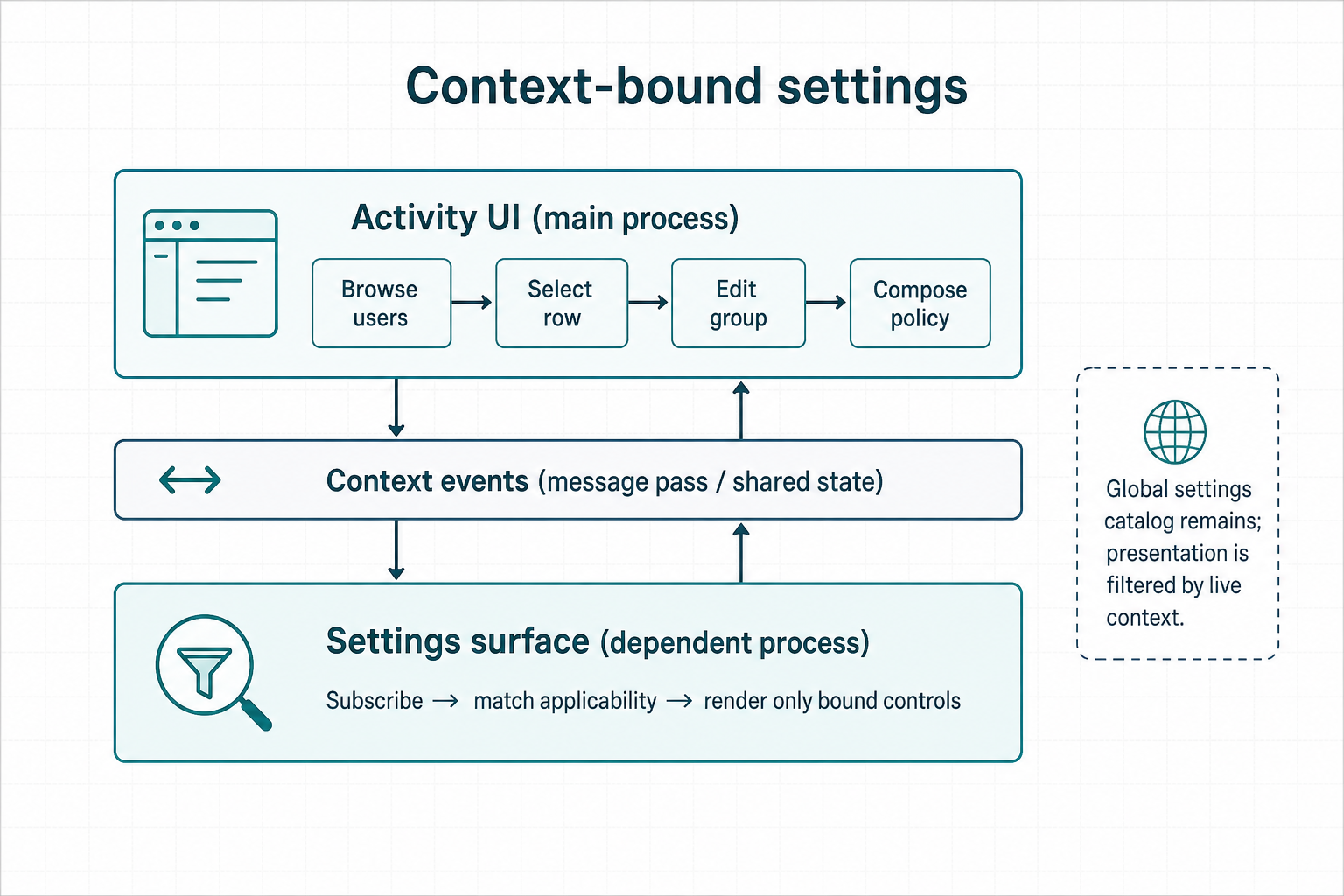

Architecture

Activity UI
Layer Job

Activity UI (main process)

Owns views, selection, modes; emits context events

Context bus

Message pass, reactive store, or IPC / shared memory across process boundaries

Settings surface (dependent process)

Subscribe → match applicability → render bound controls; write back to the catalog

Global catalog

Authoritative inventory; filtered for presentation, not deleted

Applicability model (sketch)

Treat each setting as a record with at least:

  • id — stable catalog key

  • appliesWhen — predicate over context (view, selectionType, mode, capabilities, …)

  • render — control + short consequence copy

  • source — where the value lives (API, policy file, directory attribute)

Example contexts:

  • { view: "users", selection: { type: "user", id } } → role, OU, 2SV reset, suspend, transfer

  • { view: "groups", mode: "edit", selection: { type: "group", id } } → join policy, posting, external members, aliases

  • { view: "policies", mode: "compose", draftId } → scope, enforcement, exceptions for this draft

Reshape the pane on meaningful transitions (view change, selection change, mode change) — not on every keystroke — so spatial memory inside the pane can form.

Implementation notes

In-process web / desktop

A shared store (signals, Redux, Elm architecture, SwiftUI environment, Qt property bindings) is enough when activity and settings share a process. The settings module must not own the context; it observes it.

Cross-process shells

When the activity lives in one process and chrome / settings in another (browser extension side panels, IDE plugin hosts, multi-window desktop), use explicit message passing or shared memory with a versioned context schema. Stale context is a correctness bug: show a disconnected state rather than editing the wrong object.

Catalog escape hatch

Always offer Browse all settings / jump-to-catalog for the current key. Context-bound is the default altitude, not a prison.

Honesty

Pair with GUI / source-of-truth sync from Principles: the pane reflects real config; jump to policy JSON / directory source when the file is authority. Pair with feedforward where outcomes are predictable (Scoped UX architecture).

Non-goals

  • Deleting the global Settings catalog

  • Magical rearrangement that hides causality (always name the bind)

  • Replacing object inspectors — this generalizes them to activity states

  • Auto-mutating the activity chrome based on ML guesses of intent (different problem class)

  • Windows property sheets — About Property Sheets

  • Design-tool properties panels (selection-bound inspectors)

  • Context-aware UIs — Context-Aware Computing (IxDF)

  • Adaptive UI / Event–Condition–Action literature

  • Lucy Suchman — Plans and Situated Actions (situated meaning; design-time critique we push toward runtime bind)

  • Henry Lieberman & Ted Selker — Out of context: Computer systems that adapt to, and learn from, context

  • Ben Shneiderman — direct manipulation (visibility of the object of interest)
